Shuttle Table System with permanent vacuum

We are currently developing a new shuttle table system. It will have a permanent vacuum and thus offers enormous advantages for many customers, especially in the foil sector. The vacuum is also active during the shuttle process, preventing the foils from slipping. The materials lie completely flat even with high internal tension.


• Permanent vacuum under the material for optimum material position
• Material fixing always enables maximum precision - even with several process steps
• Optimum capacity utilisation thanks to two table modules
• Easier access to the produced pieces thanks to movable material carriers
• Increased efficiency by minimising downtimes
• Table modules can be used individually or coupled
• Automatic table change possible after laser cutting
• System is not encapsulated - robot loading possible (24/7 operation)
• Permanent extraction of cutting emissions
• Simple operation and cleaning

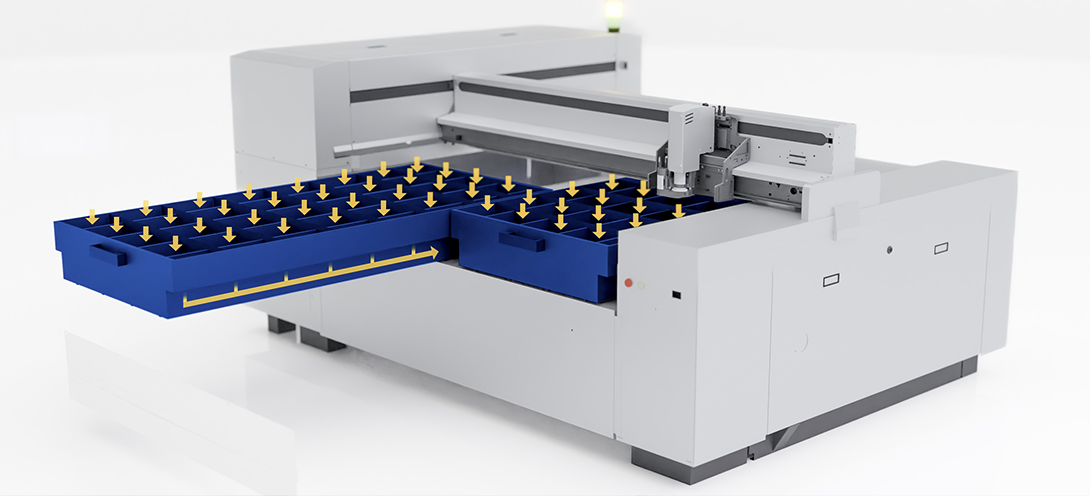

The table modules are positioned next to each other in this model. They can be pulled out individually but also together for reloading. The new shuttle table system is available as a manual, semi-manual and fully automatic version (e.g. for robot connection). It is currently planned for the XL-1600 model size.
