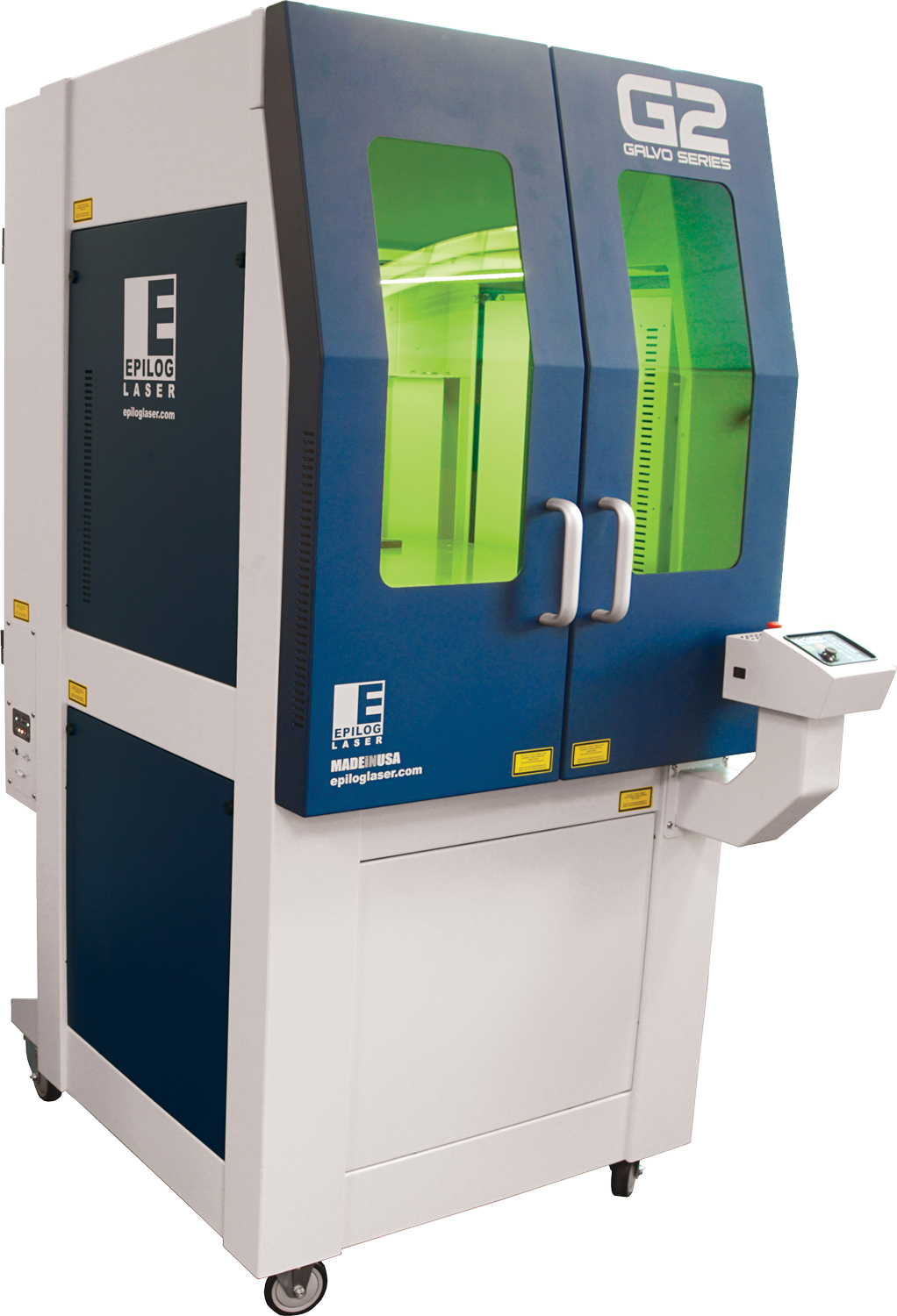

G2 Galvo Laser

G2 30 or 50-watt fiber laser, Fixed Pulse or Variable Pulse (MOPA), air cooled.

  • 商品特色
Epilog G2振鏡雷射雕刻系列

Epilog Laser推出的新型G2 Galvo雷射雕刻機。利用獨特的動態對焦鏡頭技術.
G2 雕刻範圍 :
    4“ x 4”(101 x 101 mm)
  16“ x 16”(406 x 406 mm),
  24“ x 24''(609 x 609 mm)
雷射光源:
光纖激光(1064 nm)-固定脈衝或可變脈衝(MOPA)
工作區域:
  最大24“ x 24”(609 x 609毫米)
  光纖瓦數 : 30或50瓦
  材料:直接雕刻金屬上並及塑膠材料
  • 商品說明
  • 商品規格
  • 相關推薦

Introducing the new G2 Galvo laser from Epilog Laser. Utilizing a unique dynamic-focus lens technology, the G2 allows you to change your engraving area from 4" x 4" (101 x 101 mm) to 16" x 16" (406 x 406 mm) all the way up to 24" x 24" (609 x 609 mm).


  • Laser Source: Fiber Laser (1064 nm) - Fixed Pulse or Variable Pulse (MOPA)
  • Work Area: Maximum 24" x 24" (609 x 609 mm)
  • Fiber Wattages: 30 or 50 watts
  • Materials: Directly engrave into most metals and mark engineered plastics.

Epilog G2 Galvo Laser Technical Specifications

Technical Specifications

  Epilog G2 Galvo Series
Engraving Area Up to 24" x 24"
(609 mm)
Maximum Material Thickness 4" x 4" (101 mm): 36.3" (923 mm)
16" x 16" (406 mm): 25.98" (660 mm)
24" x 24" (609 mm): 15.79" (401 mm)
Maximum Piece Size All table sizes: 29" x 27" (736.6 x 685.8 mm)
Laser Wattage 30 or 50-watt fiber laser, Fixed Pulse or Variable Pulse (MOPA), air cooled.
Standard Features .5" (12.7 mm) machined aluminum table, 2 meter/second maximum marking speed.
Print Driver & Software Laser Dashboard, Epilog Job Manager. Print from most Windows-based CAD and graphic software packages.
Operating Modes Optimized Vector Mode
Speed and Power Control Computer controlled speed and power in 1-100% increments. Color mapping links speed and power.
Print Interface. 10/100 Ethernet with Auto MDIX. Compatible with Windows 7/8/10.
Size (W x D x H) 33" x 43.75" x 71.1" (838.2 x 1111.25 x 1805.94 mm)
Weight 415 lbs (188.2 kg)
Electrical Requirements Auto-switching power supply accommodates 110 to 240 volts, 50 or 60 Hz, single phase.
Ventilation System 650 CFM (1104 m3/hr) external exhaust to the outside or internal filtration unit is required. There are two output ports, each 4" (102 mm) in diameter.
Laser System Classification Class 2 Laser Product - 1 mW CW MAXIMUM 600-700 nm.
