FiberMark S2

FiberMark S2

  • 商品特色

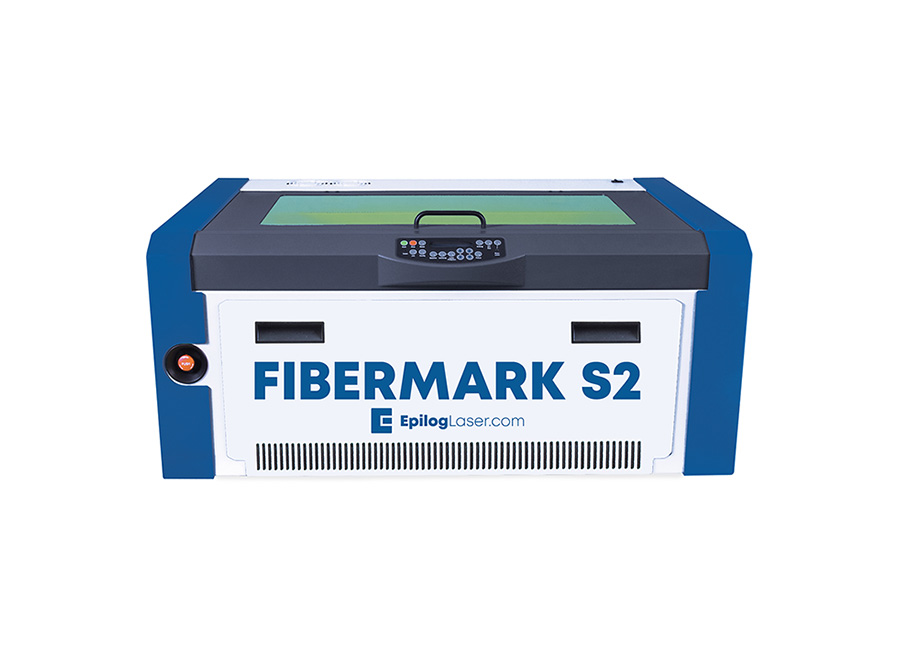

Epilog FiberMark S2

金屬雕刻和塑膠雷射標印機

Epilog的FiberMark S2是您用於蝕刻和標記所有類型的金屬和塑膠材料的解決方案。直接從任軟體輸入圖文到雷射雕刻雕刻,以輕鬆友善方式進行作業設定,並一次刻雕刻完整的零件表。
  • 直接雕刻在金屬材料
  • 在雕刻標印工程塑膠材料
  • 雕刻二維形碼,序列號和圖像
  • 商品說明
  • 商品規格
  • 相關推薦

Epilog FiberMark S2 Technical Specifications

Technical Specifications

  Epilog FiberMark S2
Engraving Area 24" x 12"
(610 x 305 mm)
Focal Length (F-Theta Lens) 3" (76.2 mm)
Maximum Material Thickness 5" (127 mm)
Laser Wattage 30 watts
Laser Type Solid State Pulsed Ytterbium Fiber Laser (air cooled).
Mode of Operation Pulsed
Repetition Rate (Frequency) 30 kHz - 60 kHz
Intelligent Memory Capacity Multiple file storage up to 64 MB. Rolling buffer allows files of any size to be engraved.
Air Assist Attach the included air compressor to our Air Assist to remove heat and combustible gases from the marking surface by directing a constant stream of compressed air across the marking surface.
Laser Dashboard The Laser Dashboard™ controls your Epilog Laser's settings from a wide range of software packages - from design programs to spreadsheet applications to CAD drawing packages.
Red Dot Pointer Since the laser beam is invisible, the Red Dot Pointer on Epilog's Fiber Laser allows you to have a visual reference for locating where the laser will fire.
Relocatable Home When engraving items that are not easily placed at the top corner of the laser, you can set a new home position by hand (FM 24) or joystick (FM Fusion) with the convenient Movable Home Position features on the FiberMark Laser.
Operating Modes Raster, vector or combined modes.
Motion Control System High-speed, continuous-loop, DC servomotors using linear and rotary encoding technology for precise positioning.
X-Axis Bearings Ground and polished stainless steel long-lasting bearing system. Self lubricating on the Fusion M2
Belts Advanced B-style Kevlar belts.
Resolution User controlled from 75 to 1200 dpi
Speed and Power Control Computer or manually control speed and power in 1% increments to 100%. Raster and vector color mapping links speed, power and focus to any RGB color.
Print Interface 10 Base-T Ethernet or USB connection. Compatible with Windows XP/Vista/7/8/10.
Size (W x D x H) 34.5" x 24.5" x 16"
(876 x 622 x 406 mm)
Weight 120 lbs (55 kg)without stand
Electrical Requirements Auto-switching power supply accommodates 110 to 240 volts, 50 or 60 Hz, single phase.
Maximum Table Weight 200 lbs (90 kg) for static and 80 lbs (36 kg) for lifiting.
Ventilation System External exhaust or internal filtration system is required via single 4" (101.6 mm) output port.
