產品介紹

Fusion Pro

Industrial Series – 24, 36 & 48

  • 商品特色


升級您的創造力,體驗無與倫比的精準和革命性的製造技術,這就是 Epilog Fusion Pro 工業等級雷射雕刻切割機。

精巧的設計、高效的性能和卓越的工藝,使它成為製造業、設計工作室和教育機構的首選。

  • 工業等級精準性: Fusion Pro 擁有卓越的雷射技術,實現精確切割和雕刻。
  • 高效能: 搭載高功率雷射,以極高的速度處理各種材料,提高生產效率。
  • 多功能操作: 配備多功能操作面板和先進的軟體,簡化複雜的任務,實現多種應用。
  • 大型工作區: Fusion Pro 提供寬敞的工作區,適用於大型材料和專業項目。
  • 數據連接: 通過數據連接,輕鬆將設計從電腦傳輸到雷射雕刻切割機,節省時間和提高生產力。
  • 安全可靠: 先進的安全功能,包括氣動吸煙塵系統和門開啟自動停機,確保操作者安全。
  • 專利實時影像系統 : 提供實時影像預覽,讓用戶在開始雕刻或切割之前可以看到即時的效果。這有助於調整和確認雕刻內容,提高精確度
  • Epilog雷射雕刻機 IRIS™ 攝影機定位系統
  • 精確定位,創意無限
  • 在現代雕刻和切割技術中,精確度是成功的關鍵。Epilog雷射雕刻機中的IRIS™攝影機定位系統為您帶來前所未有的精確度和創新能力,讓每一件作品都完美無瑕。

  • 商品說明
  • 商品規格
  • 相關推薦

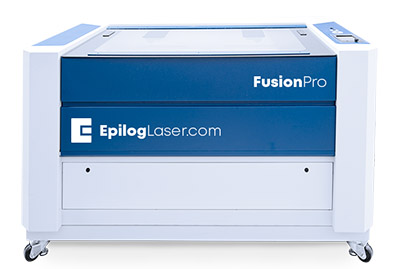

Epilog Fusion Pro 雷射工業機

本雷射機全美國製造 以業界龍頭之一Epilog全力最新設計 不僅提高了效率 速度 精度 操作方式也更為簡單. 從個人工作室到工業, 以及教育界, 廣告業, 精品業等 都有Epilog的身影. Epilog年銷上千台 並不斷發現 革新 再精進. 並在此展現這台全新大作Epilog Fusion Pro.

新一代的Epilog Fusion Pro 搭載 最新的5G加速 和 165 IPS高速雕刻 君臨雷射界. 再搭配上IRIS™ 相機定位系統 使用戶在電腦上可任意精準定位 雷射將雕/切的位置. 並且提供雙頭輸出 雕切 金屬/非金屬一體 省去額外機台及空間花費.

IRIS™ 攝影機定位系統的優點:

高解析度即時影像
即時預覽:高解析度
攝影機即時顯示工作區域,所見即所得。
細節呈現:無論是最細微的設計還是複雜的圖案,都能精確捕捉和呈現。
精確定位
快速對位:簡單直觀的操作界面,讓您快速、精確地定位材料和設計。
完美對準:確保每次雕刻和切割都準確無誤,減少浪費,提高效率。
多功能應用
適用廣泛材料:從木材、壓克力、金屬到皮革,IRIS™系統都能輕鬆應對。
多樣創作:無論是工藝品、標牌還是個性化禮品,都能完美實現。

產品特點:
簡單易用
用戶友好界面:設計直觀,操作簡便,無需專業技能即可快速上手。
即時調整:可隨時調整設計和位置,保證最佳效果。
高效生產
節省時間:精確定位和即時預覽功能,顯著提高生產效率。
減少錯誤:降低操作錯誤率,保證每次加工的高質量。
質量保證
精密加工:Epilog的高品質保證,確保每一台設備都經過嚴格測試。
耐用可靠:堅固耐用的設計,長時間高效運行。


High speed engraving over a large marking area.

Highest-Speed Engraving Over Largest Work Area

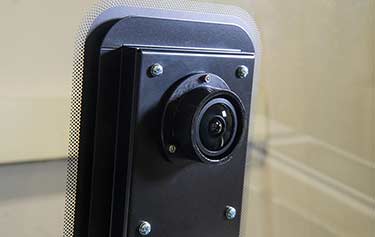

Fusion Pro IRIS Camera

IRIS™ Camera Positioning

Fusion Pro touchscreen controls

Touch Screen at the Laser

Epilog Laser headquarters building

Engineered & Manufactured in the USA

Ethernet, USB, and Wireless connections

Network Your Laser Across Your Business

Fusion Pro Safeguard features

SAFEGUARD™ Features

Fusion Pro laser head air assist

Air Assist and Compressor

PRO 48
Fusion Pro 24 and 36 laser head air assist

Air Assist

PRO 24 & 36
Fusion Pro engraving table

Split Table

PRO 48
Radiance Beam Enhancing Optics diagram

Radiance™ Beam Enhancing Optics

CO2 laser tube

CO2 Waveguide Laser Tubes by Epilog

Fusion Pro Epilog Software Suite

1 GB Memory in the Machine

Steel bearings

Long-Life Steel Bearing

Product features and configurations subject to change without notice.

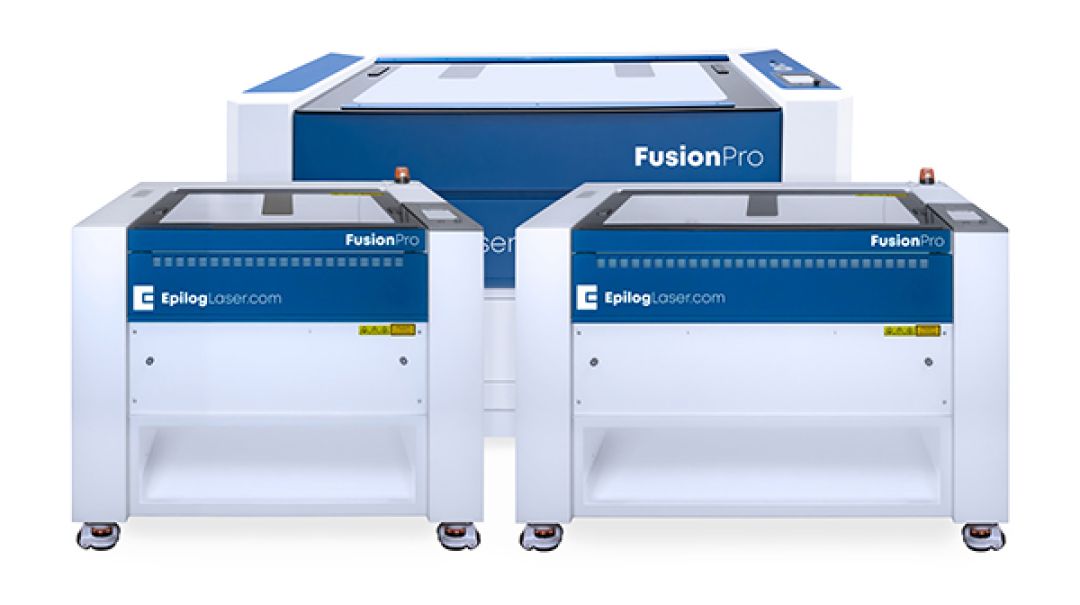

 FUSION PRO 24, 36, AND 48 LASER MACHINES

技術規格:

The Fusion Pro laser engraving and cutting machines from Epilog are our top-of-the-line laser systems and combine a large work area with the latest technological features, including:

Laser Machine:

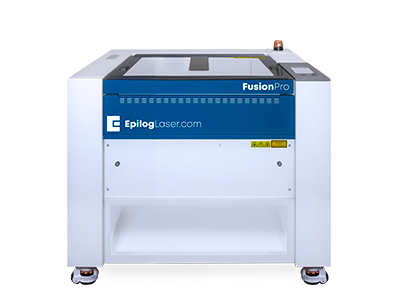

FUSION PRO 24

Industrial Series
Fusion pro laser machine

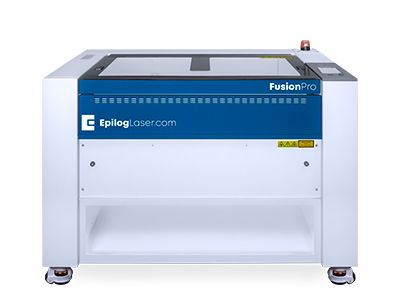

FUSION PRO 36

Industrial Series
fusion pro laser machine

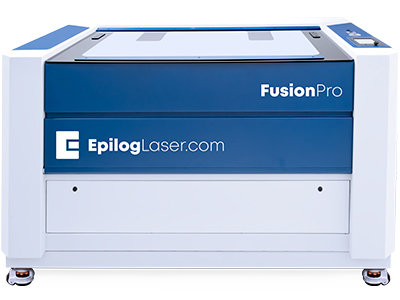

FUSION PRO 48

Industrial Series
fusion pro laser machine
Work Area:
24″ x 24″ (610 x 610mm) 36″ x 24″ (914 x 610mm) 48″ x 36″ (1219 x 914mm)
Material Thickness:
9″ (228 mm) 9″ (228 mm) 12.25″ (311 mm)
Laser Tube Types:
  • CO2: air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
  • Fiber: air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1
  • Dual Source
  • CO2: air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
  • Dual Source
  • CO2: air-cooled, metal Waveguide tube, 10.6 micrometers
  • Fiber: air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1
  • Dual Source
Laser Tube Wattages:
  • CO2: 60 watts (100 watt coming soon)
  • Fiber: 30 watts
  • Dual Source: 60 watts CO2 & 30 watts Fiber
  • CO2: 50, or 60 watts (100 watt coming soon)
  • Fiber: 30, or 50 watts
  • Dual Source: 60 watts CO2 & 30 watts Fiber or 80 watts CO2& 50 watts Fiber
  • CO2: 80, or 120 watts
  • Dual Source: 120 watts CO2 & 50 watts Fiber
IRIS™ Camera System:
2 overhead + registration 2 overhead + registration  2 overhead + registration
Wireless Connectivity:
Included Included Included
Included Lenses:
  • CO2: 2″
  • Fiber & Dual Source: 3″
  • CO2: 2″
  • Fiber & Dual Source: 3″
  • CO2: 2″
  • Fiber & Dual Source: 3″
Optional Lenses:
CO2: 1.5″ or 4″ CO2: 1.5″ or 4″ CO2: 4″
Resolution:
Fully-flexible & user-controlled from 75 – 1200 dpi Fully-flexible & user-controlled from 75 – 1200 dpi Fully-flexible & user-controlled from 75 – 1200 dpi
Maximum Engraving Speed (inches/meters per second):
165 IPS (4.2 m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode.
Print Driver & Software:
Laser Dashboard™, Epilog Job Manager™ Laser Dashboard™, Epilog Job Manager™ Laser Dashboard™, Epilog Job Manager™
Internal Memory:
Store multiple files up to 1 GB. Engrave any file size. Store multiple files up to 1 GB. Engrave any file size. Store multiple files up to 1 GB. Engrave any file size.
Operating Modes:
Optimized Raster, Vector, and Combined mode. Optimized Raster, Vector, and Combined mode. Optimized Raster, Vector, and Combined mode.
Super-Silent Cooling Fans:
Included Included Included
Motion System:
Brushless DC Servo Motors Brushless DC Servo Motors Brushless DC Servo Motors
X-Axis Bearings:
Ground & polished stainless steel, Teflon-coated, self-lubricating bearings. Dual blocks on X-axis for greater rigidity
Belts:
Advanced B-style double-wide Kevlar precision drive belts. Advanced B-style double-wide Kevlar precision drive belts. Advanced B-style double-wide Kevlar precision drive belts.
Job Trace:
Included Included Included
Auto Focus:
Included Included Included
Touch Screen:
Included Included Included
Status Light:
Included Included
Included Table:
  • CO2: Vector Cutting Table (Grid-Style)
  • Dual Source: Task Plate (Vector Grid Optional)
  • Fiber: Task Plate
  • CO2: Vector Cutting Table (Grid-Style)
  • Dual Source: Task Plate (Vector Grid Optional)
  • CO2: Task Plate (Vector Grid Optional)
  • Dual Source: Task Plate (Vector Grid Optional)
Drop Down Door:
Included Included Included
Air Assist Pump:
Optional Optional Included
Max Table Weight:
Static: Vector Grid, 60 lbs (27.2 kg)
Static: Task Plate, 90 lbs (40.8 kg)
Lifting: 60 lbs (27.2 kg)
Static: Vector, 85 lbs (38.6 kg)
Static: Task Plate, 150 lbs (68 kg)
Lifting: 85 lbs (38.6 kg)
Size (W x D x H):
41.52” x 32.81” x 40.54″
1055 x 834 x 1029 mm
53.52” x 32.81” x 40.54″
1359 x 834 x 1029 mm
70.6” x 51.3″ x 42.75″
1794 x 1304 x 1086 mm
Pedestal removed: 34” H (863 mm)
Weight:
240 lbs (108 kg) 275 lbs (124 kg) 650 lbs (295 kg)
Electrical:
Auto-switching 100-120 volts. Amp draw-MAX: 13A
Auto-switching 220-240 volts. Amp draw-MAX: 6.5A
50 or 60 Hz, single phase
Auto-switching 220-240 volts. 6.5 Amp draw-MAX (50w, 60w, 80w). 10 Amp draw-MAX (120w).
50 or 60Hz, single phase
Ventilation:
350-400 CFM (595-680 m3/hr) external exhaust to outside or internal filtration unit required. One output port, 4″ (102 mm) diameter Three total ports. Two upper exhaust ports, one lower vacuum table port. Total 735 CFM required. All ports 4” (102mm).
Safeguard Features:
Included Included Included
  Class:
Class 2 Laser Product – 1 mW cW MAXIMUM 600-700nm

Technical specifications and product configurations subject to change without notice.


適用行業:

製造業/設計工作室/教育機構創意工作室/加工廠/生產廠

應用領域:

定制製造: 精準切割和雕刻,為產品增添獨特元素。

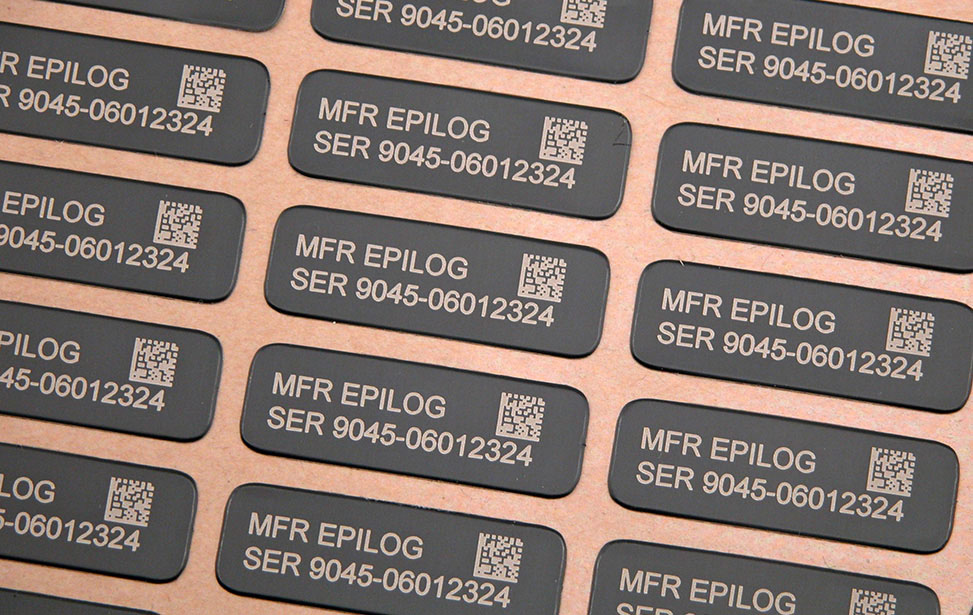

標識和標籤: 製作持久且清晰的標識和標籤。

藝術和設計: 實現複雜的藝術品和設計項目。

教育和學術研究: 結合科技和藝術,激發學生的創造力。

升級到 Epilog Fusion Pro,體驗創新、效率和高品質的結合,將您的設計帶到一個全新的層次。
