U - 5G

光雷射雕刻機 Green Laser

商品特色

商品說明
商品規格
相關推薦

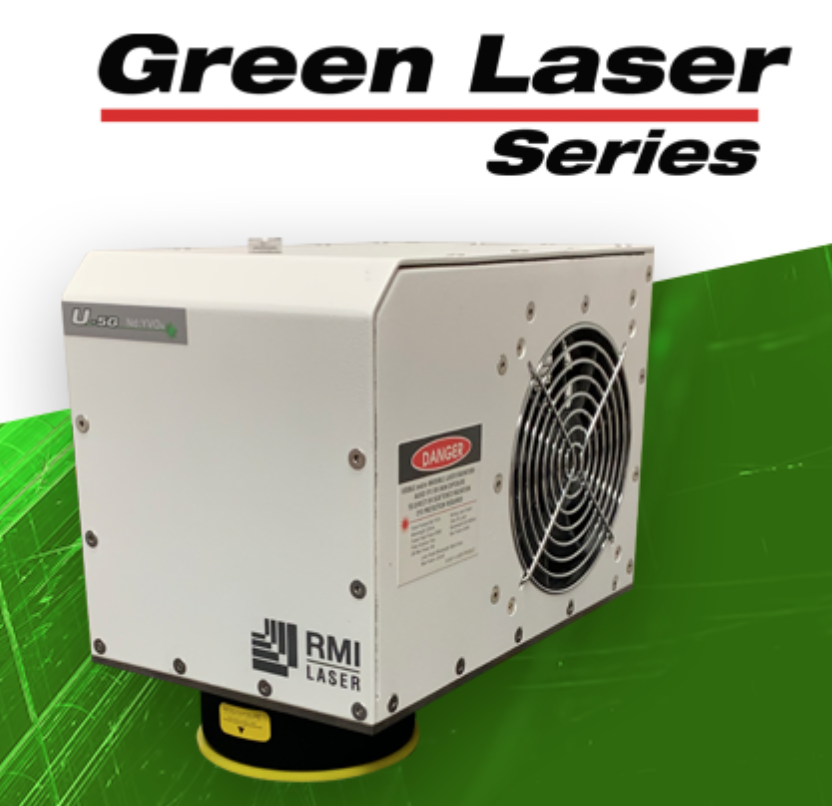

Green Laser Marker Series Marker Head

	U-5G
Laser Source Built-in	Diode Pumped Nd:YVO4
Wavelength	532 nm
Laser Source Output@ 40 kHz, average power	6 W
Peak Power	30 kW
Q-switch pulse width	~14 ns @ 10 kHz
100mm F-Theta Lens: Beam Spot Diameter Max Marking Area	~20 µm 2.56 x 2.56” 65 x 65 mm
165mm F-Theta Lens: Beam Spot Diameter Max Marking Area	~30 µm 4.13 x 4.13” 105 x 105 mm
254mm F-Theta Lens: Beam Spot Diameter Max Marking Area	~40 µm 5.91 x 5.91” 150 x 150 mm
Optional Lenses (focal length)	100, 165, 254 mm
Cooling System	Air-cooled
Operational Temp Range*	~10 - 40 ˚C (~ 50 – 104 ˚F)
Operational Humidity Range*	80% non-condensing
Weight	6.5 kg (14.33 lbs)
Dimensions LxWxH**	229 x 142 x 163 mm (9.0 x 5.6 x 6.41 in.)

* Units stated at maximum output parameters
** Allow a minimum of 5 cm (2“) of open space around the Marker Head and Controller for free air circulation. Additionally, ensure at least 10cm (4”) of open space at the rear of the Controller and Marker Head for cable attachment and maintenance access

Green Laser Marker Series Marker Controller

Operational Temp Range*	~10 - 40 ˚C (~ 50 – 104 ˚F)
Operational Humidity Range*	80% non-condensing
Power Source	AC 100 - 240 V 6A, 50/60 Hz
Consumption Power
Weight (with set of cables)	11.6 kg (25.57 lb)
Dimensions LxWxH**	455 x 445 x 135 mm (17.91 x 17.52 x 5.31 in.)
