過濾排風系統

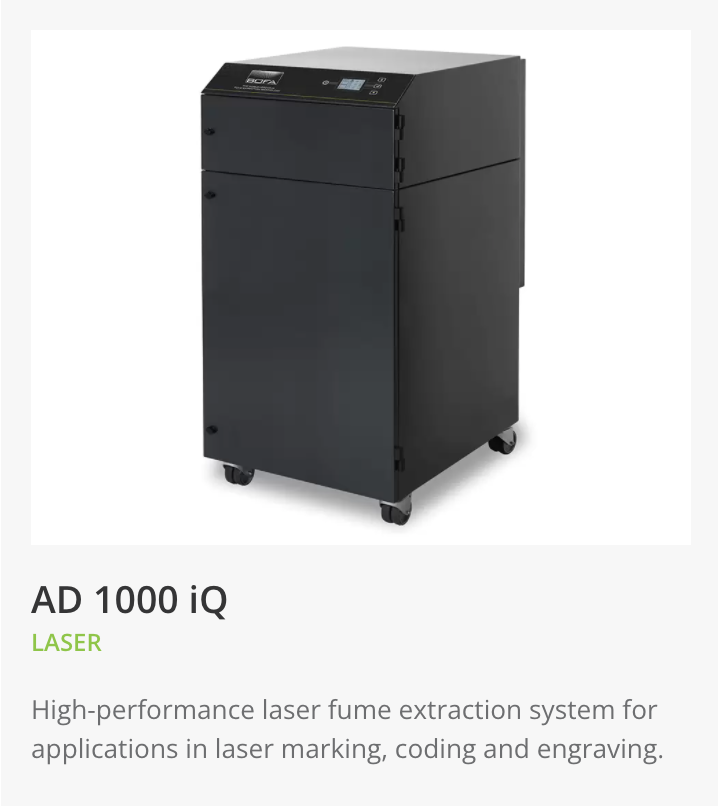

ＡＤ 1000 iQ
- 商品特色
AD 1000 iQ 適用於中型至重型雷射應用的系統
適用於：雷射焊接、選擇性雷射燒結、選擇性雷射熔化、雷射雕刻、雷射切割、雷射編碼和雷射標記。
AD 1000 iQ 煙霧提取系統是產生大量顆粒物的中型到重型應用的完美選擇。
它具有比 AD 500 iQ 更大的氣流，還具有顯著的過濾能力。
它具有比 AD 500 iQ 更大的氣流，還具有顯著的過濾能力。
即時氣流讀數 / 獨立過濾器狀態監控 / 高對比顯示 / 透過 USB 進行遠端診斷 / 長壽命、低成本的替換過濾器
Approvals: UKCA and CE | cUL | UL†
†cUL | UL: Tested to the appropriate standards, but testing may be provided by alternate nationally recognized test laboratories.
Certain product configurations may affect the certification. Please speak to your sales representative.
Approvals: UKCA and CE | cUL | UL†
†cUL | UL: Tested to the appropriate standards, but testing may be provided by alternate nationally recognized test laboratories.
Certain product configurations may affect the certification. Please speak to your sales representative.
- 商品說明
- 商品規格
- 相關推薦
.jpg)

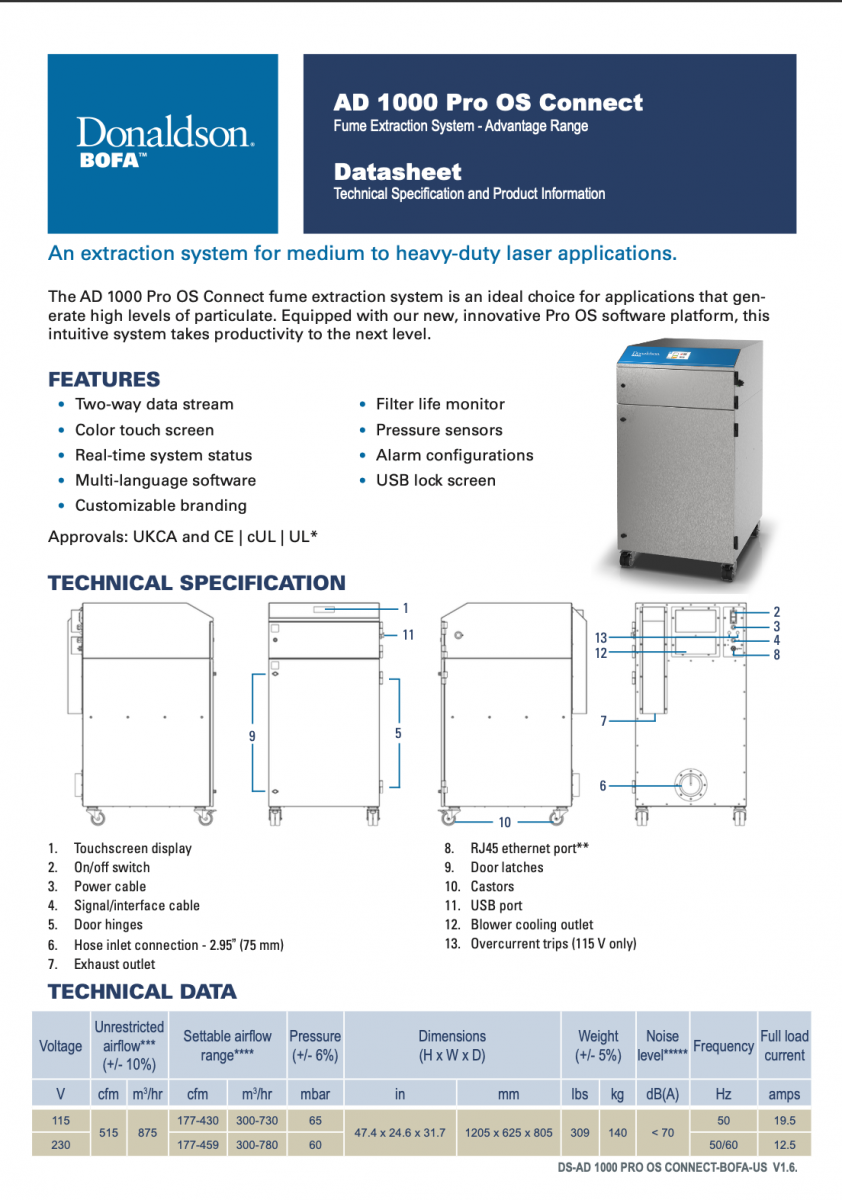

Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions | 47.44 x 24.41 x 31.10” | 1205 x 620 x 790 mm |
| Weight | 324 lbs | 147 kg |
| Airflow / Pressure | 500 cfm / 100 mbar | 850 m³/hr / 100 mbar |
| Electrical data | Voltage: 115 V Frequency: 50/60 Hz Full load current: 19.5 amps |
Voltage: 230 V Frequency: 50/60 Hz Full load current: 12.5 amps |
| Noise level (at typical operating speed) | < 85 dBA | < 85 dBA |
| Cabinet construction | Brushed stainless steel / powder-coated mild steel | Brushed stainless steel / powder-coated mild steel |
Features

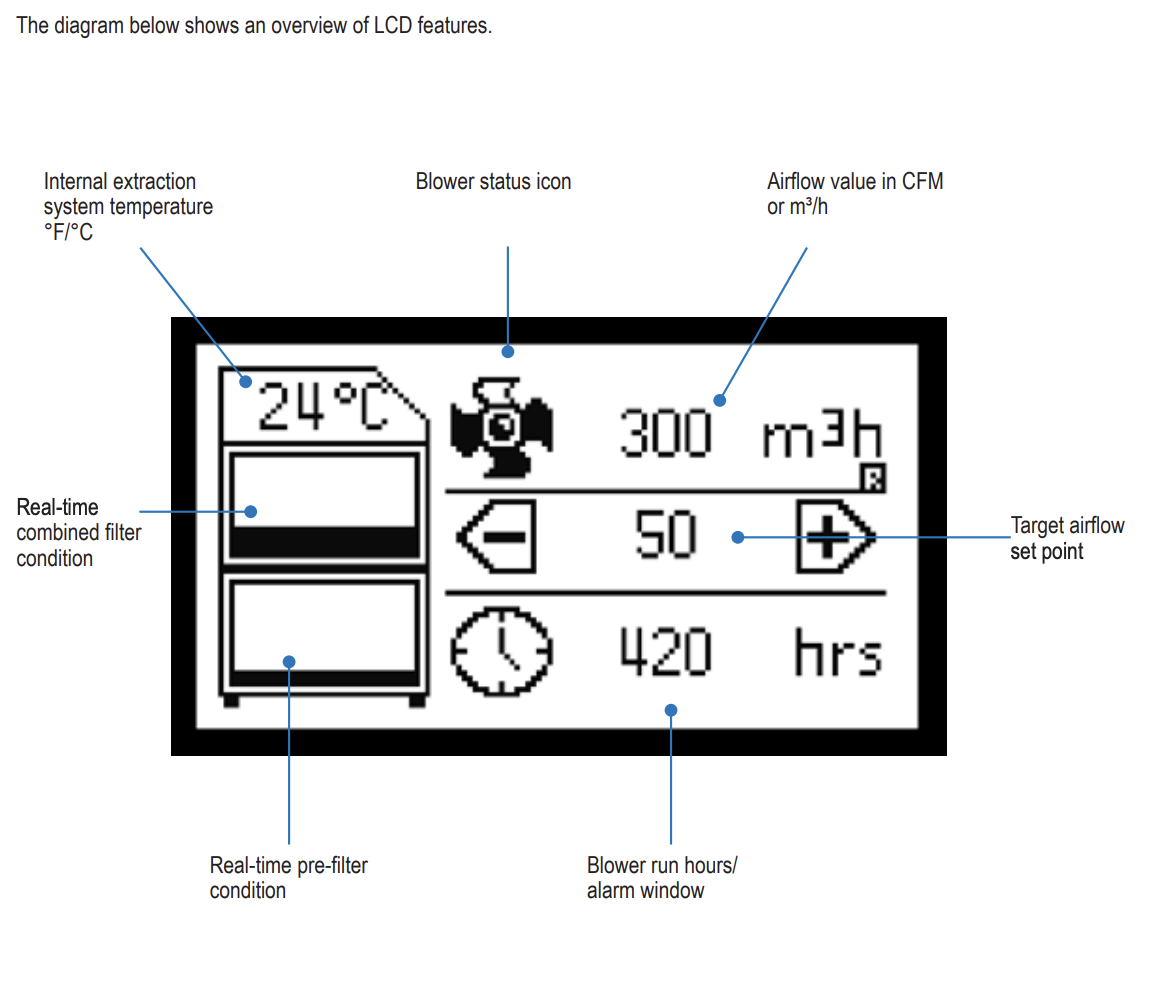

Intelligent Operating System (iQ)
Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance.
It offers multiple performance enhancements, including improved extraction efficiency, individual filter status monitoring,
and integrated design features designed to lower the cost of ownership.
It offers multiple performance enhancements, including improved extraction efficiency, individual filter status monitoring,
and integrated design features designed to lower the cost of ownership.

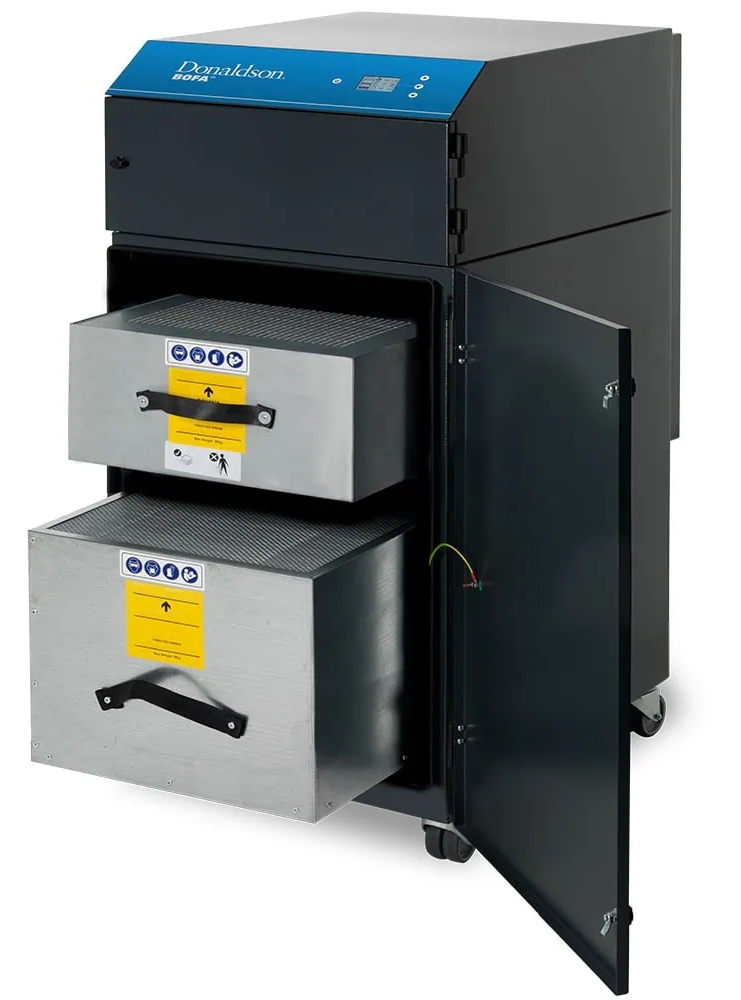

DeepPleat DUO pre-filter
Our DeepPleat DUO pre-filter is designed to maximize filter life. It incorporates a large capacity drop-out chamber within the filter which is designed to act as a pre-separator helping to extend the life of the pre-filter which in turn protects against the premature blocking of the HEPA filter.
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling.
They are designed with specific carbon types tailored to industry applications.
They are designed with specific carbon types tailored to industry applications.

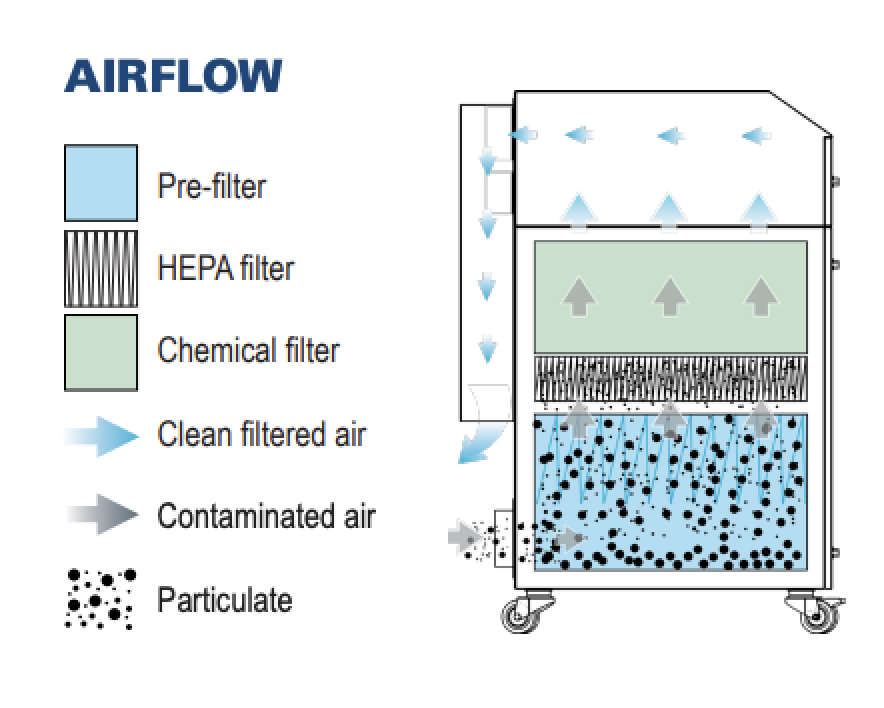

Reverse flow air technology
Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into
the filter’s drop-out chamber. This decreases particulate entering the filter media,
significantly enhancing filter capture performance, and extending filter life.
the filter’s drop-out chamber. This decreases particulate entering the filter media,
significantly enhancing filter capture performance, and extending filter life.
Automatic flow control
Automatic flow control allows the user to pre-set the correct airflow rates for the specific application,
subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.
subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.
System OK signal (optional)
Our system OK signal alerts you when there is a fault, and when filters are blocked, allowing you to schedule maintenance efficiently.
Onboard compressor (optional)
Our onboard compressor is designed to provide the laser with its air supply requirements.
Unlike standalone air compressors, our onboard compressor sits inside the extraction system for a simpler, more compact installation.
Unlike standalone air compressors, our onboard compressor sits inside the extraction system for a simpler, more compact installation.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running,
helping to save on both running costs and energy.
helping to save on both running costs and energy.
VOC sensor (optional)
Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold,
preventing the unwanted release of VOCs and other nuisance odors.
preventing the unwanted release of VOCs and other nuisance odors.
適用範圍
雷射焊接/選擇性雷射燒結/選擇性雷射熔化/雷射雕刻/雷射切割/雷射編碼與打標
產品特色
即時氣流讀數：隨時掌握系統運行狀態，確保穩定性能。
獨立過濾器狀態監測：精確了解每個過濾器的使用情況，提升維護效率。
高對比顯示：清晰的操作界面，讓用戶輕鬆掌握系統資訊。
USB 遠端診斷：支援快速排查和維修，減少停機時間。
長壽命過濾器：耐用設計，降低更換成本，經濟高效。
技術認證
UKCA 和 CE cUL UL
