產品介紹

Fusion Maker

Fusion Maker Starter Series – 12, 24, & 36

  • 商品特色
Epilog IRIS 實時影像系統的功能優點可能包括:


即時預覽: 提供實時影像預覽,讓用戶在開始雕刻或切割之前可以看到即時的效果。這有助於調整和確認雕刻內容,提高精確度

影像對齊: 能夠精確對齊雕刻或切割的位置,確保在目標物上實現準確的定位和雕刻。這對於對齊複雜形狀或圖案特別方便操作。
實時調整: 操作者在雕刻過程中進行實時調整,包括設置雷射參數、調整速度和功率等,以達到最佳的雕刻效果。
智能優化: 透過智能影像處理技術,自動調整雷射參數以適應不同的材料特性,提高雕刻效率和精度。
複雜圖像處理: 能夠處理複雜的圖像和細節,支援雕刻高解析度的圖案,呈現更精細的刻印效果。
友好的使用介面: 簡單且易於使用的用戶界面,使操作者可以輕鬆掌握實時影像系統的各項功能,減少學習曲線。
生產效率提升: 通過實時監控和調整,提高了生產效率,減少了操作失誤的可能性,並確保每個工件的品質。








  • 商品說明
  • 商品規格
  • 相關推薦

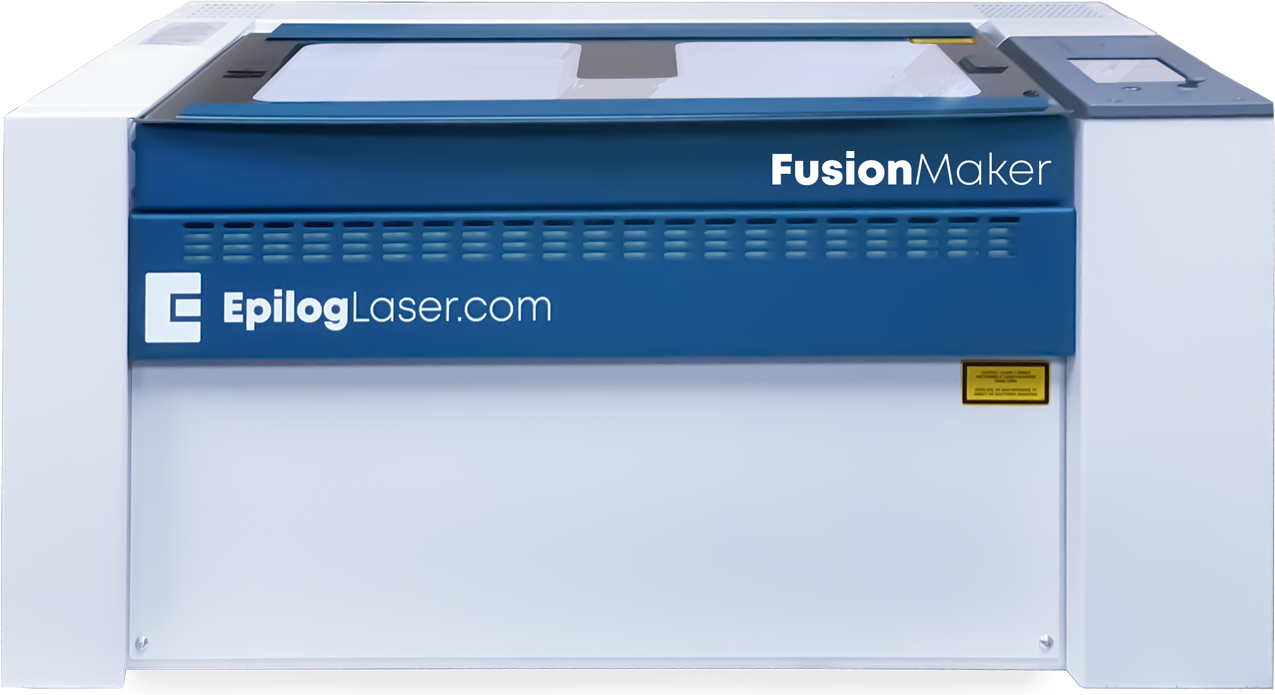

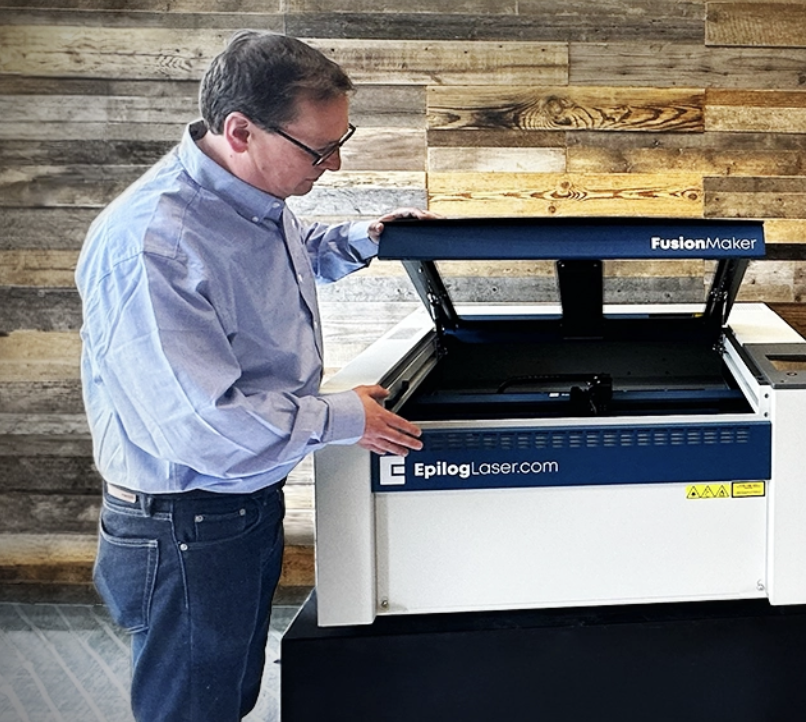

Fusion maker 雷射雕刻切割機

入門系列 – 12、24 和 36

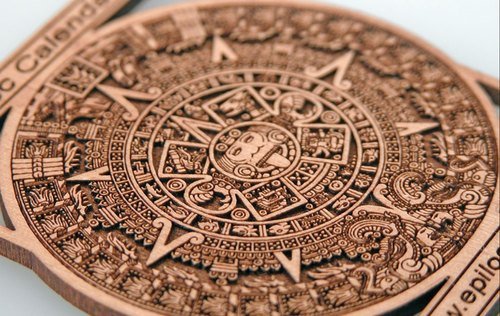

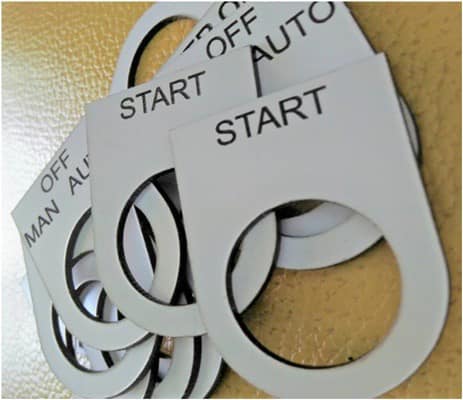

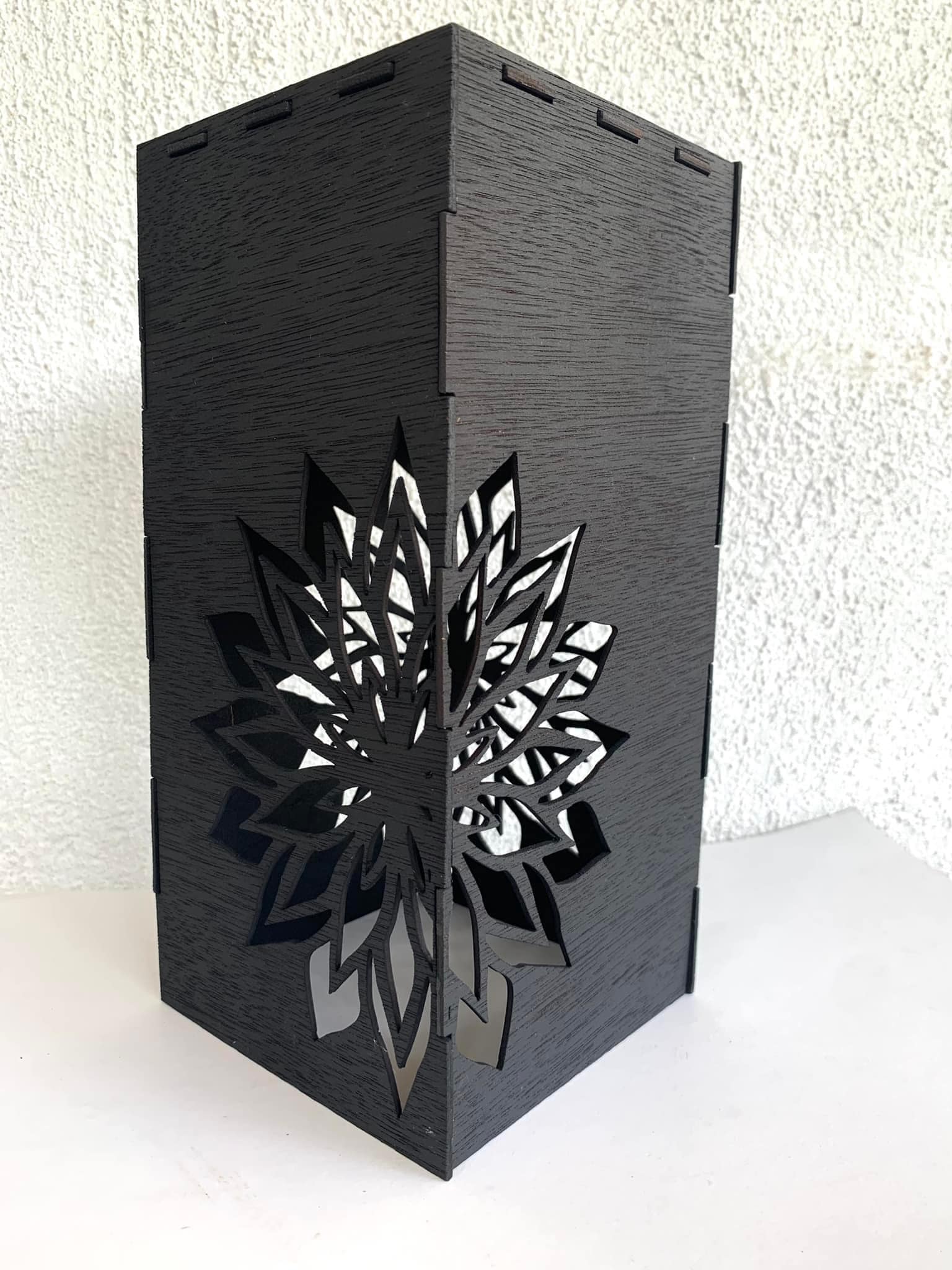

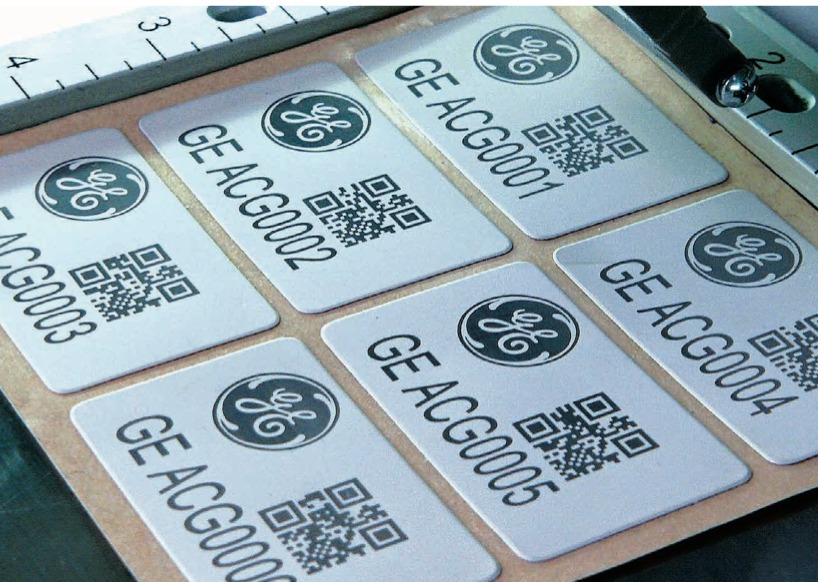

Fusion Maker 是我們最新的入門級 CO2 雷射雕刻、切割和雕刻切割系統,將業餘愛好者與工業級工程相結合。它可以應用多種材料製作雕刻和切割項目,包括木材、亞克力、紡織品、紙張、塑膠...等。
Fusion Maker Laser 可能是一個入門產品,但開箱即用,您將體驗到專業雷射雕刻切割。
Maker 系列中的所有雷射機均由Fusion Maker 12、24 和36 組成,均配備Epilog 革命性的IRIS™ 相機系統,可為雷射操作員提供雕刻台的即時影像,以便他們能夠快速準確地將藝術品定位在雕刻台上即使是形狀最獨特的物品。

Fusion Maker 雷射可能是入門系列,但開箱即用,您將體驗到專業級的結果。


FEATURES: Machine Enhancements Designed to Increase Productivity

The Fusion Maker engraving and cutting machine from Epilog Laser combines our top-of-the-line technology and our latest features into a compact system ideal for those just starting out.

Fusion Maker IRIS Camera

IRIS™ Camera Positioning

Fusion Maker touchscreen controls

Touch Screen at the Laser

Epilog Laser headquarters building

Engineered & Manufactured in the USA

Ethernet, USB, and Wireless connections

Network Your Laser Across Your Business

Fusion Maker Safeguard features

SAFEGUARD™ Features

Fusion Maker laser head air assist

Air Assist

Radiance Beam Enhancing Optics diagram

Radiance™ Beam Enhancing Optics

CO2 laser tube

CO2 Waveguide Laser Tubes by Epilog

Fusion Maker Epilog Software Suite

1 GB Memory in the Machine

Steel bearings

Long-Life Steel Bearing

Product features and configurations subject to change without notice.



提高生產率的機器增強功能

Epilog Laser 的 Fusion Maker 雕刻和切割機將我們的頂級技術和最新功能結合到系統中,非常適合剛剛創業及設計師的。


 Fusion Maker Laser Machines 技術規格:

The Fusion Maker laser engraving and cutting machines from Epilog are our top-of-the-line entry-level laser systems that feature a compact footprint and the latest technological features, including:

  Laser Machine:

FUSION MAKER 12


Starter Series

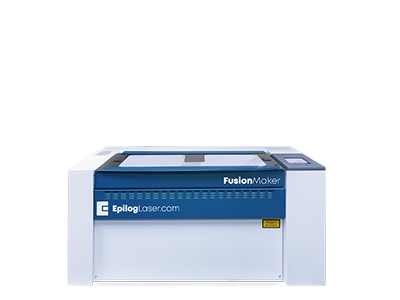

Fusion Maker 12 laser machine

FUSION MAKER 24


Starter Series

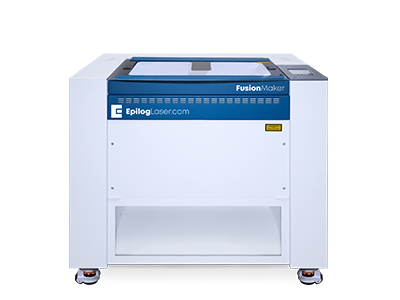

Fusion Maker 24 laser machine

FUSION MAKER 36


Starter Series

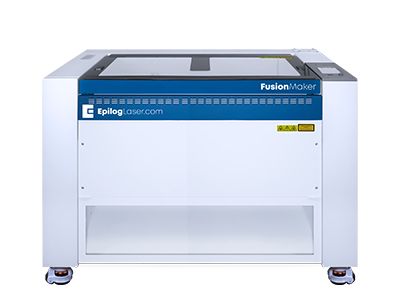

Fusion Maker 36 laser machine
  Work Area:
24″ x 12″ (610 x 305mm) 24″ x 24″ (610 x 610mm) 36″ x 24″ (915 x 610mm)
  Material Thickness:
7″ (178 mm) 10″ (254 mm) 10″ (254 mm)
  Laser Tube Types:
Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers. User replaceable.
  Laser Tube Wattages:
CO2: 30, or 40 watts CO2: 40 watts CO2: 40, or 50 watts
  IRIS™ Camera System:
1 overhead 2 overhead 2 overhead
  Wireless Connectivity:
Included Included Included
  Included Lenses:
2″ 2″ 2″
  Optional Lenses:
1.5″ or 4″ 1.5″ or 4″ 1.5″ or 4″
  Resolution:
Fully-flexible & user-controlled from 75 – 1200 dpi
  Maximum Engraving Speed (inches/meters per second):
60 IPS (1.5 m/s) with 3.5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode.
  Print Driver & Software:
Laser Dashboard™, Epilog Job Manager™
  Internal Memory:
Store multiple files up to 1 GB. Engrave any file size.
  Operating Modes:
Optimized Raster, Vector, and Combined mode.
  Super-Silent Cooling Fans:
Included Included Included
  Motion System:
High-speed stepper motors
  X-Axis Bearings:
Ground & polished stainless steel, Teflon-coated, self-lubricating bearings. Dual blocks on X-axis for greater rigidity
  Belts:
Advanced B-style double-wide Kevlar precision drive belts.
  Job Trace:
Included Included Included
  Auto Focus:
Included Included Included
  Touch Screen:
Included Included Included
  Included Table:
Honeycomb Cutting Table Honeycomb Cutting Table Honeycomb Cutting Table
  Air Assist Pump:
Optional Optional Optional
  Size (W x D x H):
39.5″ x 26.5″ x 17.9″
1003 x 673 x 455 mm
41.52″ x 32.81″ x 38.04″
1055 x 834 x 967 mm
53.52″ x 32.81″ x 38.04″
1359 x 834 x 967 mm
  Weight:
138 lbs (63 kg) 225 lbs (102 kg) 260 lbs (117 kg)
  Electrical:
110 to 240 volts, 50 or 60 Hz, single phase
  Ventilation:
350-400 CFM (595-680 m3/hr) external exhaust to outside or internal filtration unit required. One output port, 4″ (102 mm) diameter
  Safeguard Features:
Included Included Included
  Class:
Class 2 Laser Product – 1 mW cW MAXIMUM 600-700nm

Technical specifications and product configurations subject to change without notice.
