G100
- 商品特色
(2).jpg)
- 商品說明
- 商品規格
- 相關推薦

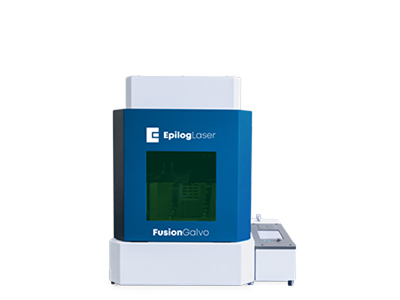

Epilog Fusion Galvo G100 金屬雷射雕刻機 — 高效精準的金屬雕刻解決方案
美國原裝製造｜專為工業級金屬標記與雕刻打造Epilog Fusion Galvo G100 是一款專業級金屬雷射雕刻機，結合高速雕刻效能與精準圖稿定位技術，

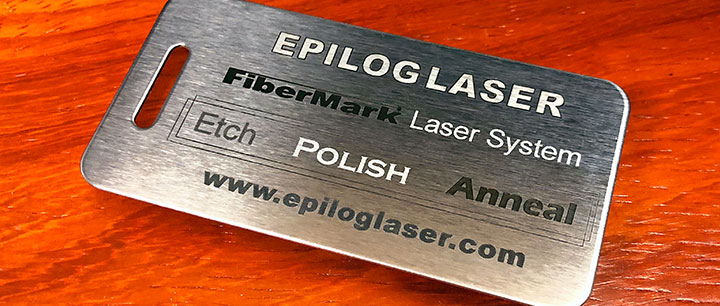

可執行深度雕刻、白色拋光標記與深黑色退火蝕刻，適用於醫療器械、電子零件、工業工具等多種金屬材料。
產品亮點
- IRIS™ 攝影系統：即時影像導引，圖稿擺放精準快速
- 雷射儀表板：直覺式操作介面，專案設定更輕鬆
- 極速雕刻效率：適合大量標記生產線或客製化服務
- 高精密光學元件：長時間穩定運作，維護成本低

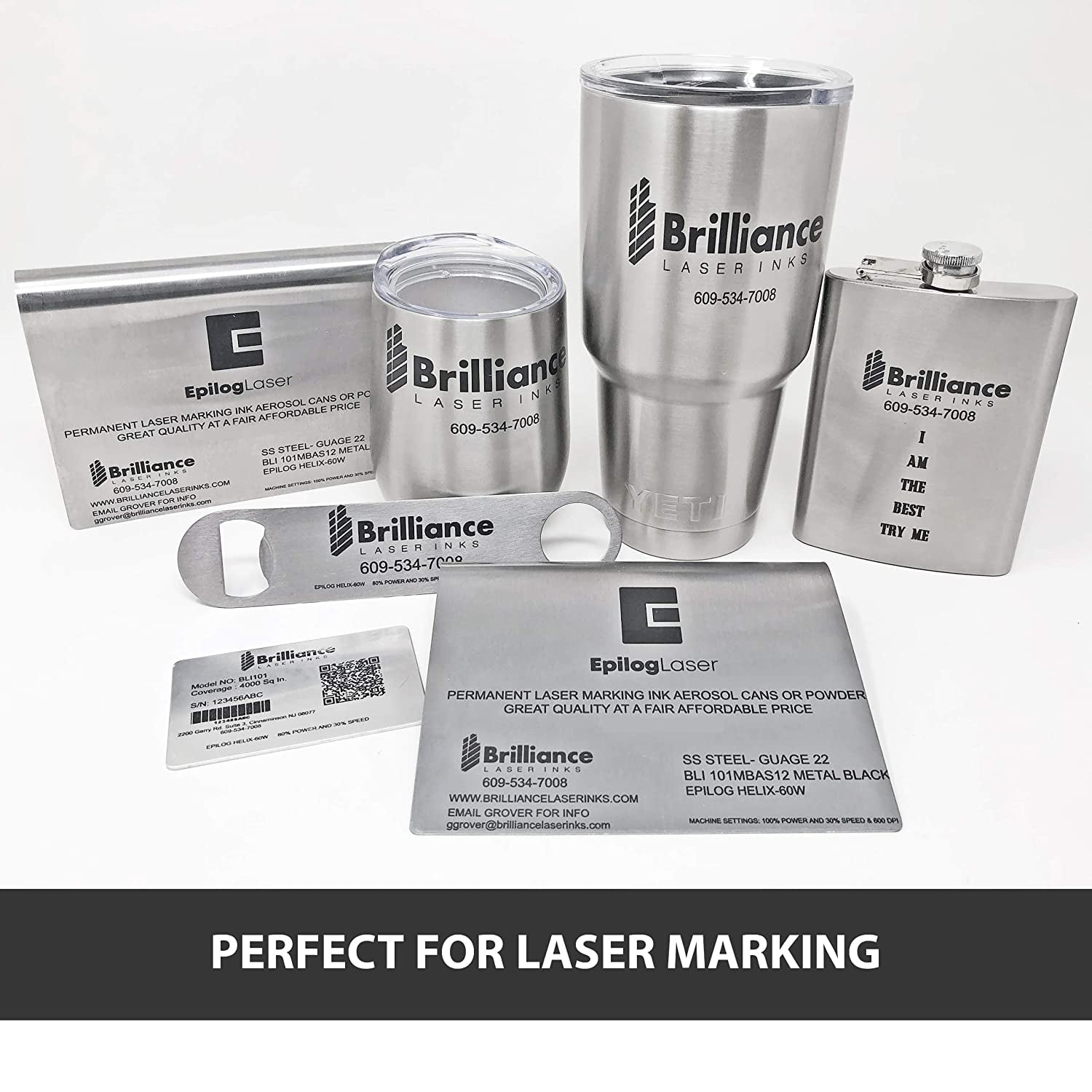

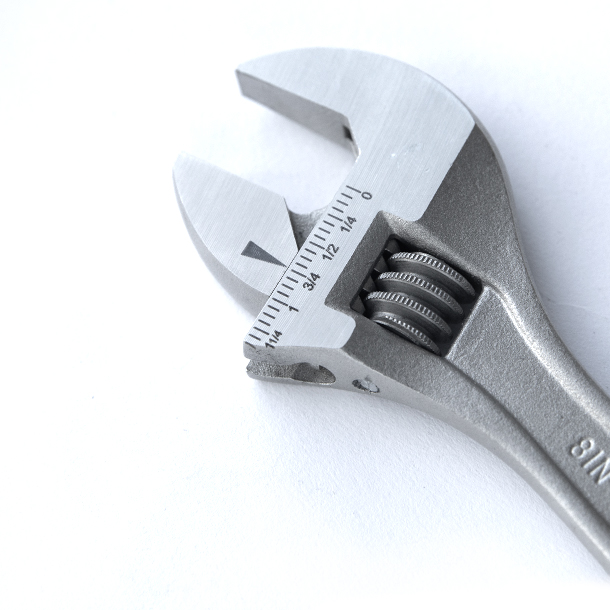

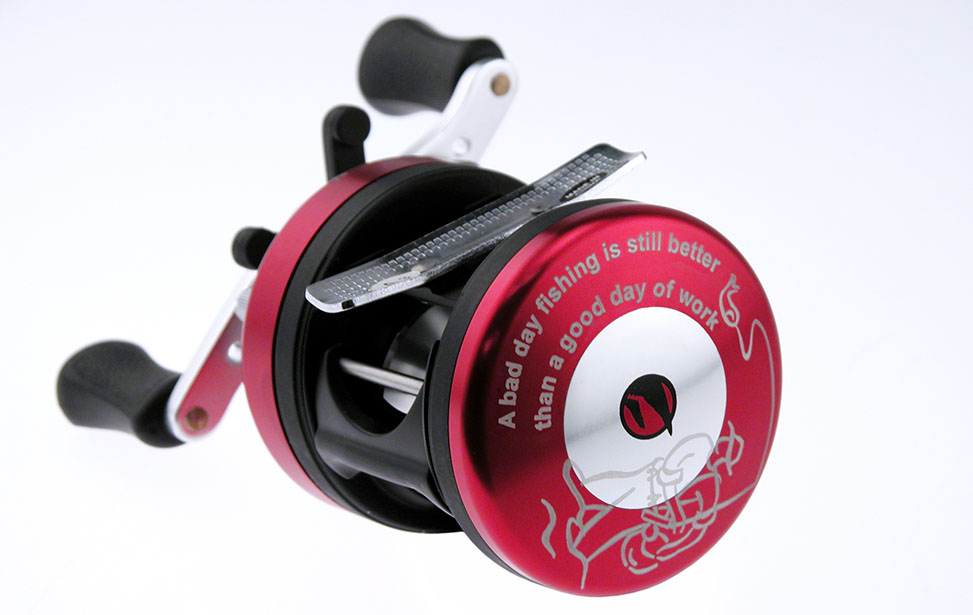

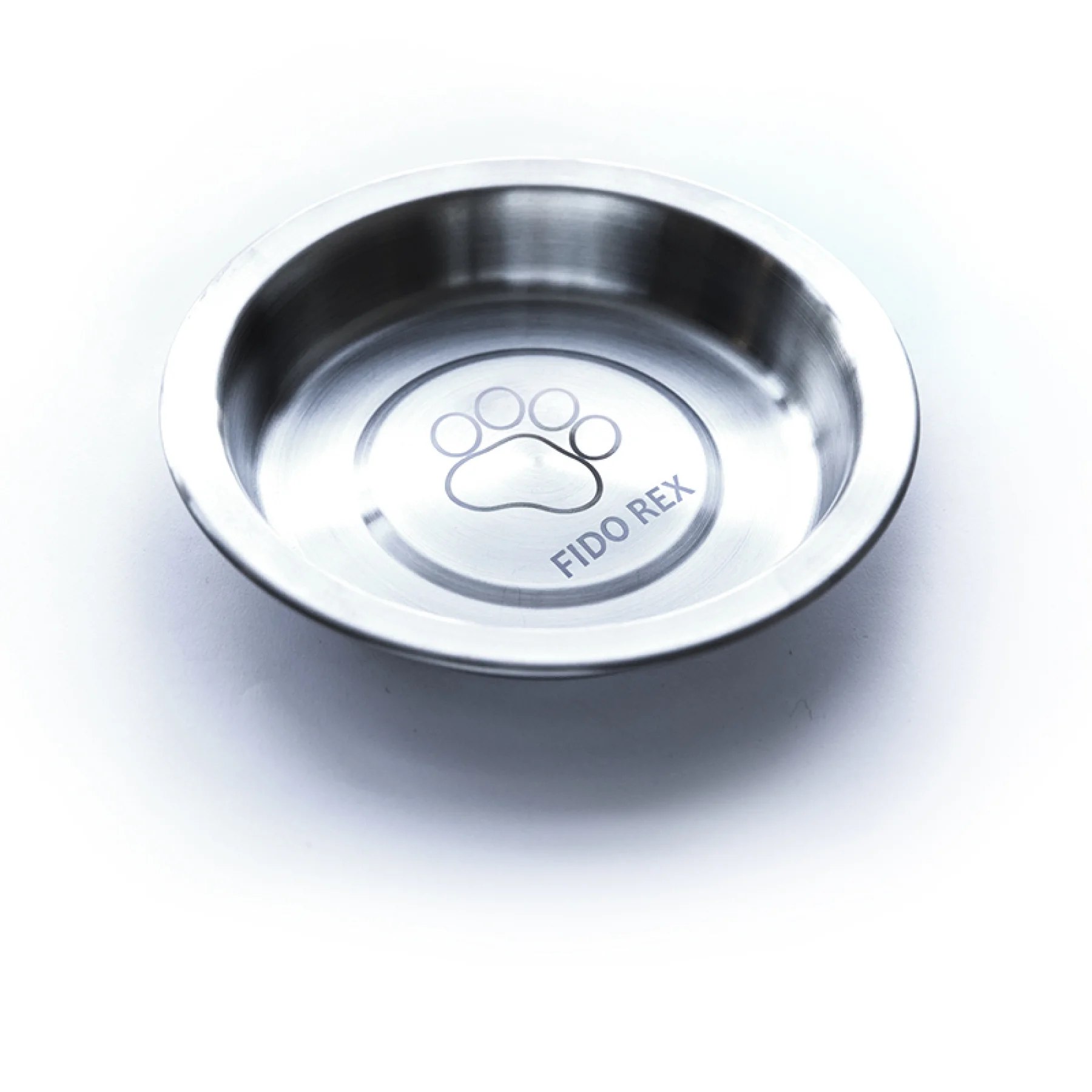

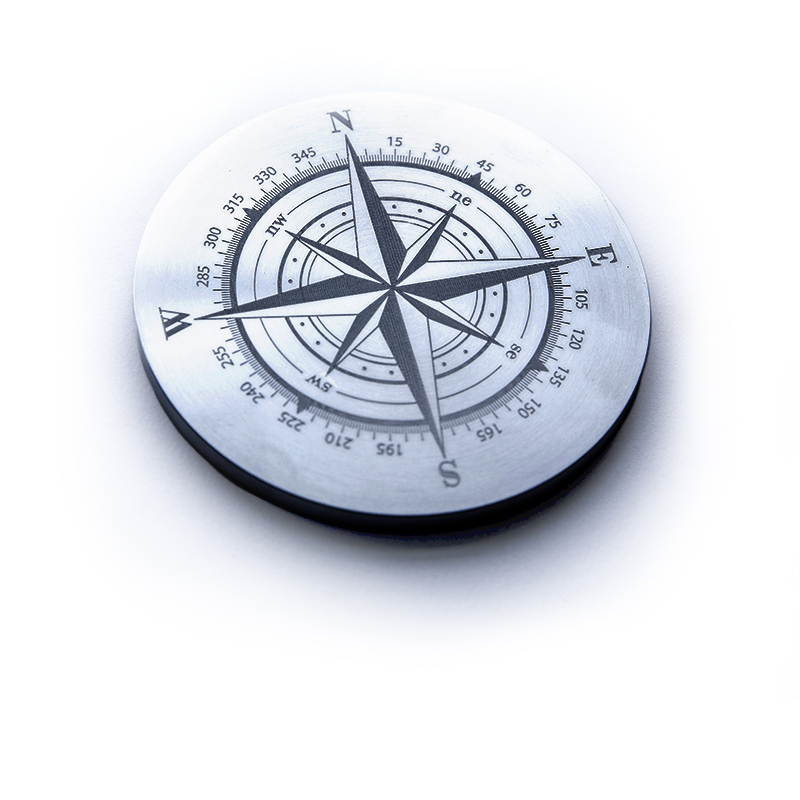

- 多樣金屬應用：鋁、不鏽鋼、鈦、鍍鉻、合金皆可加工
適用產業
醫療產業｜電子零件製造｜工具零售與客製化｜汽車與航太元件標記
Epilog Fusion Galvo G100 不僅帶來卓越的加工速度與雕刻品質，更是中小企業導入金屬雷射雕刻自動化的首選機種。
FEATURES: Machine Enhancements Designed to Increase Productivity
The Fusion Galvo engraving machine from Epilog Laser combines leading-edge galvo technology and our latest features that allow manufacturers to quickly and easily engrave metal parts and components.
Large Marking Field
Two Lenses Included
Automated Mechanical Door
Software Compatibility
Design While the Laser Is Operating
IRIS™ Camera Positioning
Job Trace
Touch Screen at the Laser
Network Your Laser Across Your Business
Multiple Files at the Galvo
Memory in the Machine
Red Dot and Auto Focus
Integrated Exhaust Controller
MADE IN THE USA
PrintAPI
Epilog Pulse
Product features and configurations subject to change without notice.
TECHNICAL SPECIFICATIONS: Fusion Galvo Laser Machines
The Fusion Galvo machine from Epilog provides incredible marking speeds and artwork positioning capabilities, along with the following technical features:
|
Laser Machine:
|
FUSION GALVOMetal Marking Machine
 |
|
Work Area:
|
F163: 4" x 4" (101 x 101 mm) F254: 6" x 6" (152 x 152 mm) |
|
Material Thickness:
|
F163: 10" (254 mm) F254: 6" (152 mm) |
|
Laser Source:
|
Fiber, air-cooled, 1064nm |
|
Laser Source Wattages:
|
30-watt MOPA, 60-watt MOPA, or 100-watt MOPA fiber configurations |
|
IRIS™ Camera System:
|
2 overhead |
|
Software Compatibility:
|
Works with most Windows-based CAD and design software |
|
Wireless Connectivity:
|
Included |
|
Included Lenses:
|
F163 and F254 lens |
|
Resolution:
|
Fully-flexible & user-controlled from 75 – 1200 dpi |
|
Print Driver & Software:
|
Laser Dashboard™, Epilog Job Manager™ |
|
Internal Memory:
|
Store multiple files up to 1 GB. Engrave any file size. |
|
Super-Silent Cooling Fans:
|
Included |
|
Job Trace:
|
Included |
|
Auto Focus:
|
Included |
|
Touch Screen:
|
Included |
|
Max Table Weight:
|
100 lbs (46 kg) |
|
Size (W x D x H):
|
28" x 23" x 31" (door closed) 37" height (door open) 711mm x 584mm x 787mm / 940mm |
|
Weight:
|
131 lbs (59.5 kg) |
|
Electrical:
|
Auto-switching 100-120 volts, Amp draw-MAX: 13A Auto-switching 220-240 volts, Amp draw-MAX: 6.5A 50 or 60 Hz, single phase |
|
Ventilation:
|
450-650 CFM (764-1104 m3/hr) |
|
Class
|
Class 2 Laser Product – 1 mW cW MAXIMUM 600-700nm |
Technical specifications and product configurations subject to change without notice.
